William Bullock (Inventor)

On 3 April 1867, in a pressroom preparing to feed one of America’s big-city newspapers, William Bullock climbed onto his own invention. ^[1] A new high‑speed press was being installed for the Philadelphia Public Ledger, and the 54‑year‑old inventor was there in person, fine‑tuning the machine that promised to fling out thousands of papers an hour. ^[1]

When a driving belt slipped, Bullock tried to fix it the way men in steam-age factories often did: with his boot. He kicked at the belt to throw it back onto a revolving pulley. Instead, his leg was dragged between the machinery and crushed. ^[1][2] Infection followed, then gangrene. ^[1] Nine days later, he died in Pittsburgh, the city that had powered his career and now received his body. ^[1]

The man who helped revolutionize how fast news could move through the world was killed by the very technology that carried it. ^[1]

From Orphan to Southern Machinist

Back to New York, Chasing New Machines

Bullock returned to New York and poured his energy into mechanical ideas that had nothing yet to do with newspapers. He designed a cotton and hay press, a seed planter, and a lathe cutting machine — the kinds of devices that could speed up work in fields and workshops across a rapidly industrializing country. ^[1]

In 1849, he hit on something that drew outside attention: a grain drill that won him a prize from the Franklin Institute. ^[1] The recognition marked him as more than just a clever local machinist. His machines were beginning to matter beyond his own shop.

A Newspaper Editor Who Thought Like an Engineer

Not long after that prize, Bullock made a move that shaped his future: he stepped into the newspaper world. ^[1] He became an editor for The Banner of the Union, a Philadelphia paper that later relocated to Catskill, New York. ^[1]

Editing copy and watching deadlines pile up, Bullock confronted printing as a bottleneck, not an abstraction. Each edition had to fight its way through presses that still relied heavily on hand-feeding and manual handling. If the words were modern, the machinery often was not.

By 1853, he was working on a machine to change that: a hand‑turned wooden printing press with a self‑feeder. ^[1] It was modest compared to what would come later, but the direction was clear. Bullock was trying to drive human hands out of the most monotonous, dangerous, and time-consuming parts of printing.

Designing Speed for the Illustrated Press

The leap from small experiments to national influence came in 1860. That year, Bullock designed a press for Frank Leslie’s Illustrated Weekly, a widely read national publication. ^[1] The job brought him face to face with the harsh arithmetic of mass circulation: millions of impressions, drawn images as well as text, and constant pressure to print faster.

Bullock moved to Pittsburgh, where iron, coal, and machine works gave him the industrial base to attempt something bolder. ^[1] There he perfected what became his signature creation: the web rotary press. ^[1]

To understand its impact, it helps to know what came before. In 1843, Richard March Hoe had patented a rotary press that already marked a huge improvement over flatbed designs. ^[1] Bullock’s 1863 improvements built on Hoe’s foundation and helped revolutionize the printing industry “because of their great speed and efficiency.” ^[1]

The Bullock Press Changes the Pace of News

Bullock’s press abandoned the old system of feeding individual sheets into a press. Instead, it pulled in a continuous roll — a “web” — of paper. ^[1] That web ran through cylinders that printed on both sides, then cut and folded the sheets automatically. ^[1]

The effect was transformative. The press was self‑adjusting. ^[1] A sharp serrated knife sliced sheets with such precision that it “rarely needed sharpening.” ^[1] The machine could reportedly turn out up to 12,000 sheets an hour, and with later refinements, up to 30,000. ^[1]

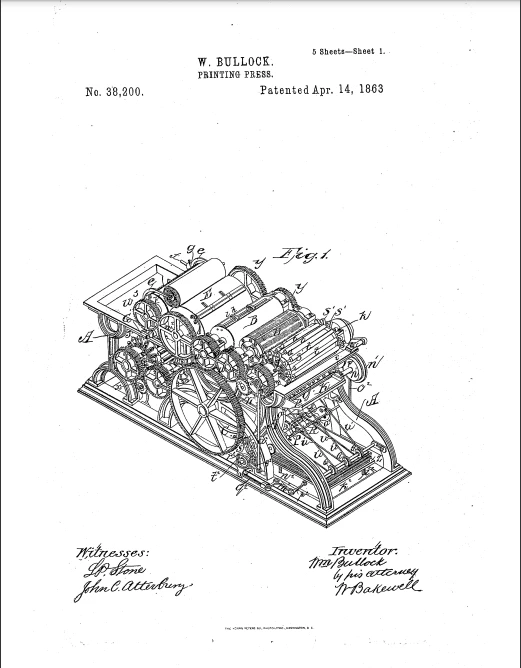

A patent granted on 14 April 1863 — U.S. Patent No. 38,200 — covered this continuous‑roll printing press, widely known as the Bullock Press. ^[3] It was described as the first machine built especially for curved stereotype plates, the curved metal plates that wrapped around a cylinder and carried the type. ^[1][3] The Bullock Press could print both sides of the sheet and cut the paper either before or after printing, something older presses could not match. ^[1][3]

A contemporary account notes that the Bullock Press was being produced out of Pittsburgh by 1865, industrializing a design that had started with hand‑turned experiments only a decade earlier. ^[1][3]

Underlying these achievements was a deceptively simple idea: feed a continuous roll of paper into a press built for that purpose, adjust it on the fly, and let the machine handle the cutting, gripping, and folding. ^[1] It was the first web press using a continuous web or roll of paper built especially for curved stereotype plates. ^[2]

From then on, newspapers weren’t just printed; they were manufactured, at speeds that changed what a daily paper could be.

A Machine Built on Hidden Details

Building a Safer Flow of Paper

Another late‑era invention tackled a more visible hazard: what happened when that continuous roll of paper was cut into individual sheets.

A U.S. patent published on 1 March 1870, attributed to William Bullock with Richard Vose named as the administrator of Bullock’s estate, described “an improvement in rotary paper-cutting machines for cutting paper from a continuous roll into sheets.” ^[4][5][6] The invention was “especially designed to be used in connection with the Bullock printing-press.” ^[6]

The problem it set out to solve was simple to state and dangerous in practice: in existing machines, “the forward end of the paper, immediately after being cut, [was] dropping down out of reach of the gripers.” ^[6] At high speed, that loose edge could cause misfeeds, tears, or jams.

Bullock’s solution was a set of fingers or pressers — labeled N in the drawings — built into the cutting cylinder. ^[6] As the continuous web met the hollow cutting cylinders (E and F), these fingers projected to press the leading edge of each freshly cut sheet against the face of the “female” cutting-cylinder, right where the gripers would seize it. ^[6] The fingers were carefully shaped so they would not perforate the paper, only hold it. ^[6]

Cam-guides attached to the frame (A) orchestrated the dance. As the cylinders turned, small rollers on the crank ends of the griper shaft and finger rod ran along fixed cams, causing the gripers and fingers to open, close, project, and withdraw at just the right moments. ^[6] A yielding spring-bar and a strip of India rubber helped hold the web taut as the knives did their work. ^[6]

The patent’s single formal claim was narrowly focused: “the finger or presser N as described, in combination with revolving paper-cutting machines constructed and operating substantially as set forth.” ^[6] But like so many of Bullock’s ideas, it targeted a concrete, often invisible problem in an otherwise spectacular machine.

The Google Patents family listing for this invention appears under publication numbers US100368A and US100367A in different records, a reminder that even the paperwork around Bullock’s designs carries a residue of 19th‑century complexity. ^[4][5][6]

A Fatal Adjustment in Philadelphia

For all that engineering care, the danger remained.

On 3 April 1867, Bullock was at work on one of his new presses being installed for the Philadelphia Public Ledger newspaper. ^[1] When a driving belt slipped from a pulley on the running machine, he tried to kick it back into place. ^[1] It was a common gesture in the era of open gearing and unguarded belts — and a disastrous one.

Patents That Kept Working After He Stopped

Whose Ideas, Exactly?

The story of the Bullock Press is also, in a quieter way, a story about how ideas travel.

According to later accounts, including a History of Information entry relying on a Wikipedia summary, Bullock’s press incorporated ideas for newspaper printing that had been patented in Austria in 1858 by Alois Auer. ^[2] Auer was a Viennese printer, director of the Austrian state printing house — the K. K. Hof‑ und Staatsdruckerei — and oversaw production of the Wiener Zeitung newspaper. ^[2]

Whether Bullock drew directly from Auer’s work cannot be firmly reconstructed here, but the claim points to a broader reality of the mid‑19th century: inventions did not arise in isolation. Printers and engineers studied one another’s machines across borders, adapting and improving them in ways that blurred the lines between influence and originality.

Legacy of a Dangerous Machine

William Bullock is usually remembered with a pair of stark labels: an American inventor from Pittsburgh, and the man behind the web rotary press. ^[1][2] The first describes his origins. The second captures his impact.

His 1863 refinements to Hoe’s rotary press opened the way to newspapers that could be printed and folded at speeds previously impossible, fed from continuous rolls of paper and handled almost entirely by machinery. ^[1][2] The Bullock Press printed both sides, cut before or after printing, and tamed the flow of paper with serrated knives and self‑adjusting mechanisms. ^[1][3]

Yet the technology that turned news into an industrial product also carried its own blunt violence. Open belts, exposed gears, and heavy rotating cylinders offered no mercy to a misstep. Bullock’s death — crushed by the press he had championed and modified, then finished off by gangrene — underscored the cost of speed in an age before safety guards and regulations. ^[1][2]

Beneath the headlines of “inventor killed by his own invention” lies a more intricate legacy: an orphan from upstate New York who learned in foundries, failed in business, edited a newspaper, raised thirteen children, and spent his life shaving seconds and scraps of waste out of the printing process. ^[1]

His patents eventually expired. ^[4][5] His machines were superseded. But the world he helped create — a world where news arrives as a mass-produced object, flung out in vast identical sheets at industrial speed — never really went away.
